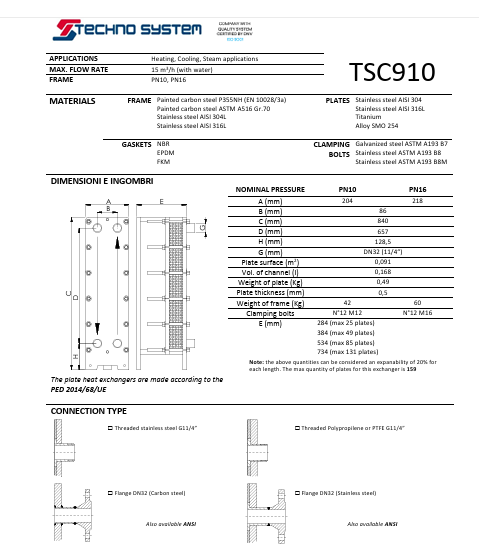

Heat Exchanger Technosystem - TSC 910
Type: Gasketed Plate Heat Exchanger
Max Flow Rate: 15 m³/h (water)
Pressure Ratings: PN10, PN16
Plate Materials: AISI 304 / 316
:Product specification table
| - | Information | Specifications |
|---|---|---|
| 2.6 kg | Weight | |
| φ147 | Hole Diameter | |
| 1502*500(1292*296) | Dimensions(mm) | |
| H | Pattern | |
| SS316 | Plate Meterial | |
| 0.5 | Plate Thickness | |
| Channel Plate | Design Function |

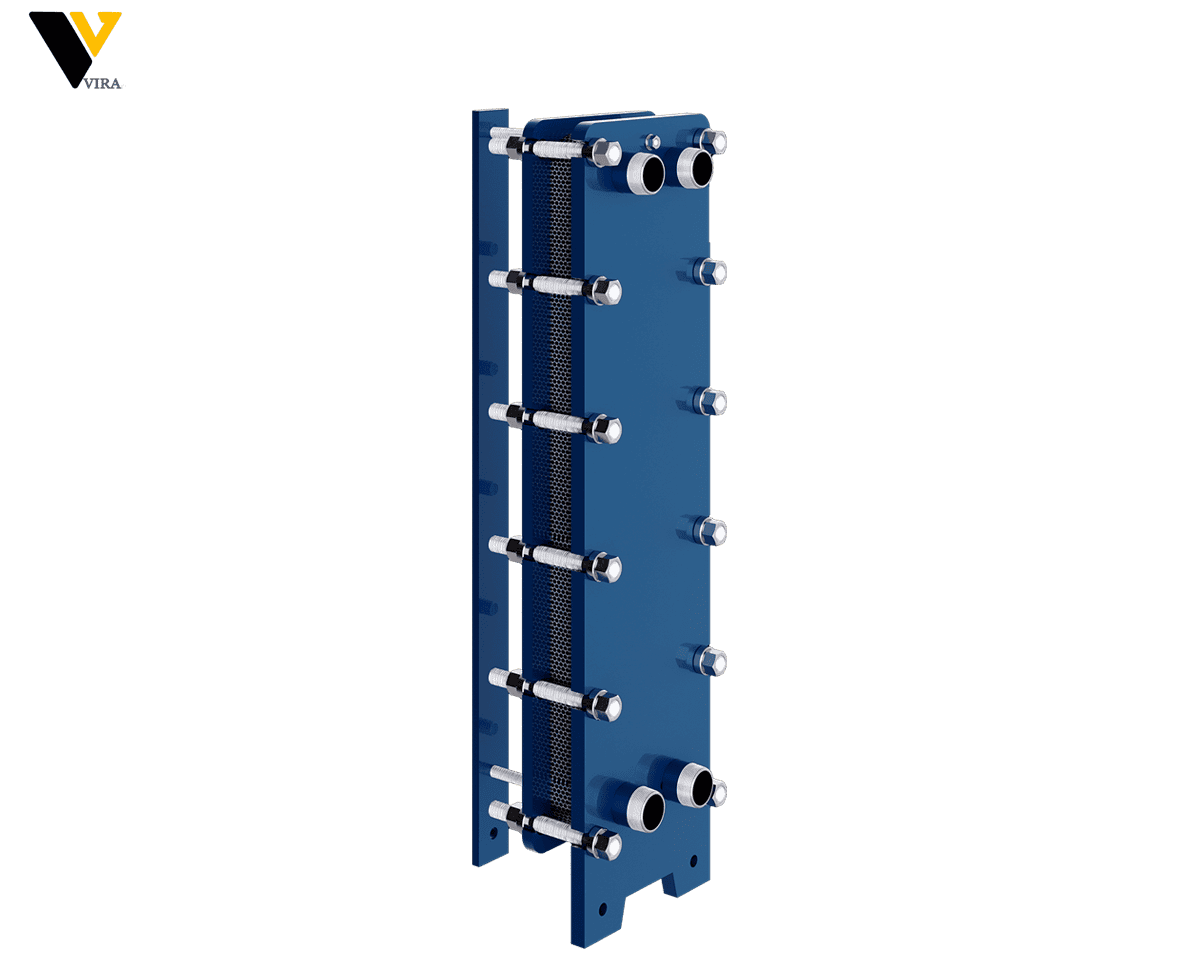

:TSC 910 Gasketed Plate Heat Exchanger – TECHNOSYSTEM
The TSC 910 is a high-capacity, customizable gasketed plate heat exchanger engineered by TECHNOSYSTEM for demanding industrial and HVAC applications. Built using the LEAN manufacturing method, it delivers both performance and flexibility
Thanks to its modular design, the unit can be fully opened, serviced, and expanded to meet growing system demands
Certified and tested according to PED standards, the TSC 910 is ideal for heating, cooling, and steam applications, as well as use with food fluids and oils
?Why Choose TSC 910
🔄 Fully inspectable and expandable design
🔧 Built using LEAN method for efficient manufacturing
✔ Tested according to PED (Pressure Equipment Directive) standards
⚙️ Designed for HVAC, cogeneration, industry, and district heating
🔁 Modular configuration allows up to 159 plates
🚀 Fast delivery – standard builds available in just a few working days
🛠️ Full customization available upon request
:Price of TSC 910
:The final price of the TSC 910 heat exchanger depends on several customizable factors
Type and number of plates
Plate material (304, 316, Titanium, SMO 254)
Gasket material (NBR, EPDM, FKM)
Connection material and pressure rating
💵 Estimated price range (base model with SS plates and NBR gaskets):
From €2,300 to €4,800 or equivalent in local currency (subject to configuration)
📞 Contact our sales team now for a custom quote based on your application.
:About TECHNOSYSTEM
TECHNOSYSTEM S.p.A, based in Italy, is a trusted European manufacturer of advanced thermal transfer equipment, including gasketed and brazed plate heat exchangers
With over two decades of expertise, the company delivers products meeting EU PED standards and provides rapid customization, making it a preferred brand in over 50 countries
:After-Sales Support & Services
Replacement gaskets & plates
Cleaning, inspection & service support
Remote and on-site technical consultation
Long-term maintenance partnerships
❓ Frequently Asked Questions (FAQ)
?Q1: Can this unit be used for steam and food-grade applications
Yes, the TSC 910 is compatible with steam and food-grade fluids, thanks to its hygienic design and certified materials
?Q2: Is the plate pack serviceable
Absolutely. The unit is fully inspectable and expandable. It can be easily disassembled for cleaning or adding plates
?Q3: What’s the difference between gasket types
NBR: For oils and general-purpose use
EPDM: Suitable for hot water and steam
FKM (Viton): For aggressive media and high-temperature applications
?Q4: Can the number of plates be increased later
Yes. The modular chassis allows up to 159 plates depending on your pressure drop and thermal duty
:Conclusion
The TSC 910 Plate Heat Exchanger is a top-tier solution for industries that demand customization, high efficiency, and easy maintenance
Whether you’re in HVAC, industrial processing, cogeneration, or food & beverage, this model offers maximum thermal performance with minimal downtime
:Investing in the TSC 910 means choosing
🔥 Energy savings
🔧 Reduced maintenance costs
🛠 System flexibility
📈 Long-term performance
