Gasket Heat Exchanger S4A SS316/0.5mm V
Weight: 0.24 kg
Dimensions(mm): 449*140(381*70)
Pattern: V
Plate Thickness: 0.5
:Product specification table
| - | Information | Specifications |
|---|---|---|
| 0.24 kg | Weight | |
| φ28 | Hole Diameter | |
| 449*140(381*70) | Dimensions(mm) | |
| V | Pattern | |
| SS316 | Plate Meterial | |
| 0.5 | Plate Thickness | |
| Channel Plate | Design Function |

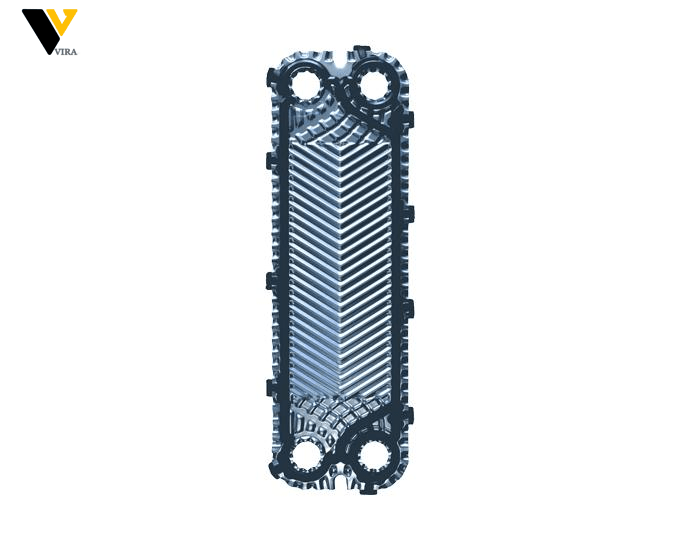

Product Description – Gasket Plate Heat Exchanger S4A SS316/0.5mm V
Manufacturer: Tivan Mobadel Vira
Model: S4A
Plate Material: Stainless Steel SS316
Plate Thickness: 0.5 mm
Plate Type: V
Gasket Type: Clip-on or glue-type (EPDM, NBR, Viton available)
Applications: HVAC, Chemicals, Food & Beverage, Energy, Water Treatment
Superior Iranian Engineering – Global Quality Standards
The S4A Plate مبدل حرارتی Heat Exchanger with gasket sealing is a flagship product developed by Tivan Mobadel Vira, designed for maximum thermal performance and durability
Manufactured in Iran under ISO-certified conditions, it competes with global brands while offering regional pricing advantages
This model has been successfully deployed in both domestic and international markets due to its outstanding performance, compatibility, and cost-effectiveness
Premium Material – SS316 Stainless Steel Plates
Each heat transfer plate in the S4A model is made of SS316 stainless steel, offering excellent corrosion resistance, hygienic performance, and long-term reliability, even in aggressive chemical environments
The 0.5mm thickness ensures optimal thermal conductivity while maintaining mechanical strength, ideal for high-efficiency heat exchange
Flexible Sealing – High-Performance Gaskets
Tivan Mobadel Vira provides gasket options in multiple materials such as EPDM, NBR, and Viton (FKM) to suit different industrial media and temperature ranges
Our gaskets are engineered for easy installation, secure sealing, and reusability, supporting maintenance efficiency and long service cycles
Cost-Effective & Competitive – Made in Iran, Trusted Worldwide
While maintaining premium international standards, the S4A Gasketed PHE is priced far more competitively than European and Asian imports
By leveraging local production capacity, Tivan Mobadel Vira ensures short lead times, fast support, and direct pricing—making this model a top choice for contractors and OEMs across the Middle East, CIS, Africa, and Europe
❓ Frequently Asked Questions (FAQ)
?Q1: What does “S4A SS316/0.5mm H” stand for
S4A: Plate size/model
SS316: Stainless steel material
0.5mm: Plate thickness
?Q2: What gasket materials are available
We offer EPDM (for hot water & food), NBR (for oil-based fluids), and Viton (for aggressive chemicals and high temperatures).
?Q3: Are your S4A plates compatible with other brands
Yes. Our S4A design is fully compatible with common OEM models, and can replace imported plates from Alfa Laval, GEA, etc.
?Q4: Can I request customized hole configurations or connection standards
Yes, we provide custom plate and gasket configurations according to your process requirements or drawing specs.
?Q5: Is this model suitable for CIP (Clean-In-Place) systems
Absolutely. With SS316 plates and high-grade gaskets, this model is CIP-friendly and ideal for hygienic industries.
:Conclusion
The Gasket Plate Heat Exchanger S4A SS316/0.5mm V by Tivan Mobadel Vira represents a perfect fusion of Iranian innovation and global engineering standards
Offering top-tier performance in demanding applications, this model ensures long-lasting reliability, ease of maintenance, and energy savings—all while delivering unbeatable value
Whether you’re upgrading your industrial system or building new, trust in Tivan Mobadel Vira to deliver the best-in-class gasketed heat exchangers مبدل صفحه ای , locally made and globally recognized
